Named Groups and Backreferences

Named groups are used to store extracted data for further processing.

Syntax

{query}:label

Curly brackets enclose the whole query or subquery. A label is used for referring to the content of the named group later. Note that spaces are not allowed between the right bracket, colon and label.

When a rule successfully matches some text, the sequence matched by query is stored into the named group "label". Afterwards, one can refer to the contents of the group through backreference.

Syntax

$label

A named group can store the matches of the whole query or any subquery that is a valid query expression.

Example

{a}:1 - OK

{a}:1 or b - OK

{a or b}:3 – OK, "a or b" is a valid PDL query

{phrase(a, b)}:1 – OK, "phrase(a, b)" is a valid PDL query

phrase({a}:1,{b}:2) – OK, both "a" and b" are valid PDL queries

{phrase(a,b) and phrase(c,d)}:2 – OK, "phrase(a,b) and phrase(c,d)" is a valid PDL query

phrase({a, b}:2, c) – error, "a, b" is not a valid PDL query

a {or b}:3 – error, "or b" is not a valid PDL query

Named groups can be arbitrarily nested.

Example

{follow({a}:1, b)}:2

{follow({{a}:1 or c}:2, b)}:3

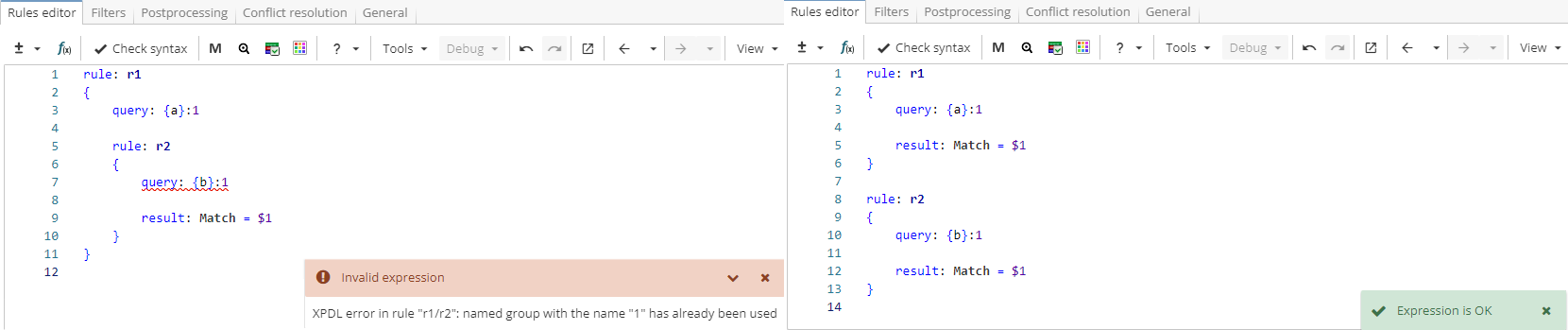

Named group label must be unique within its parent rule. However, neighbour rules can have groups with the same label, as shown in figure Figure 1

xpdl rules hierarchy group synt
Figure 1. Labels must be unique within their parent rule
Rule fragment
 rule: r1
 {
 	query: {a}:1

 	rule: r2
 	{
 		query: {b}:1

 	result: Match = $1
 	}
 }

Named group content is immutable. This means that nested rules can access but not modify values stored in the named groups that were declared in the parent rules (except for the cases described in the section Specialized rule types). If a rule sets additional restrictions on values stored in the named group, a new named group must be declared to capture values that meet these new restrictions.

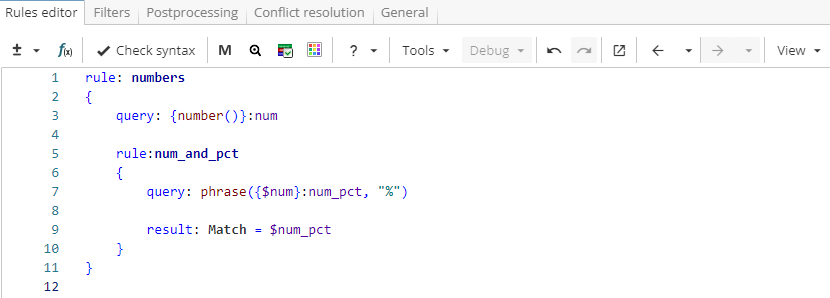

Consider a ruleset in Figure 2 that extracts numbers followed by the percent sign.

xpdl rules hierarchy num rule
Figure 2. Example rules extracting percentage
Rule fragment
 rule: numbers
 {
 query: {number()}:num

 rule:num_and_pct
 {
 query: phrase({$num}:num_pct, "%")

 result: Match = $num_pct
 }
 }

When the ruleset is applied to text

xpdl rules hierarchy num input

the upper-level rule captures all numbers in the text ("65.5", "455,000" and "753,000") into the group named "num". Then, after the nested rule is run, a subset of those numbers followed by the percent sign is stored in the group named "num_pct". The content of the group "num_pct" constitutes the rule output shown in Figure 3

xpdl rules hierarchy num output
Figure 3. Output of the example rules in Figure 2

Note, however, that the group "num" still stores all numbers, not only those followed by "%" sign. To check this, one can change the result like it is shown in Figure 4 and output the group "num" instead of the group "num_pct".

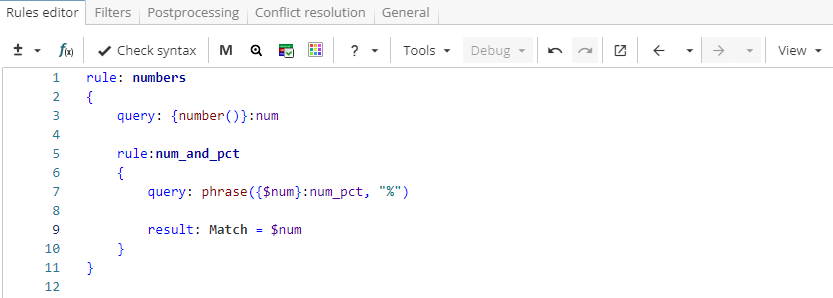

xpdl rules hierarchy num rule1
Figure 4. Example rules that output all numbers found in the text
Rule fragment
 rule: numbers
 {
 query: {number()}:num

 rule:num_and_pct
 {
 query: phrase({$num}:num_pct, "%")

 result: Match = $num_pct
 }
 }

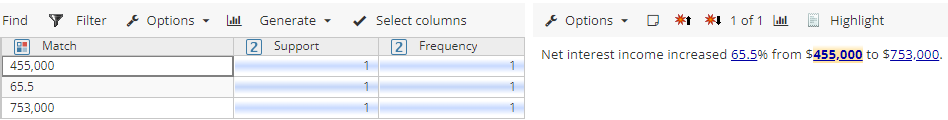

The output for the changed rule is shown in Figure 5.

xpdl rules hierarchy num output1
Figure 5. Output of the example rules in Figure 4
